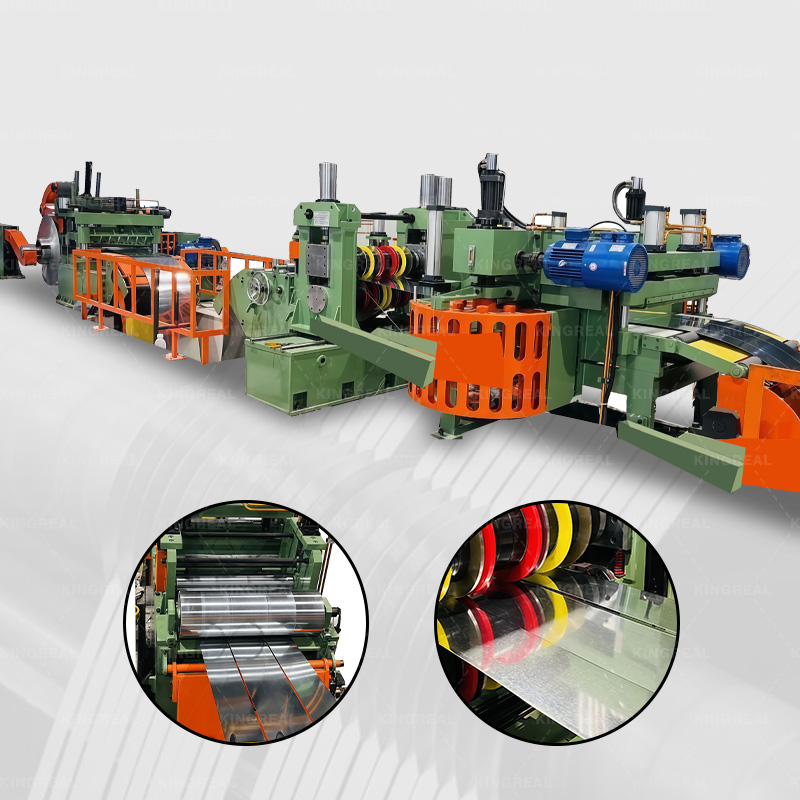

Definition of Simple Slitting Line

KINGREAL SLITTING has introduced a simple slitting line, specifically designed for the longitudinal cutting of metal coils ranging from 0.5mm to 1.0mm in thickness, at a cutting speed of up to 120m/min. This simple slitting machine is capable of simultaneously producing up to 32 precise narrow strips, with a minimum slitting width of 12mm, ensuring high consistency, smooth surfaces, and burr-free edges. After undergoing secondary processing, these high-quality metal strips can be rapidly converted into finished products. They are widely utilized across various industries—including cable manufacturing, electronics, and steel structures—thereby effectively meeting the market's demand for efficient, high-quality metal components.

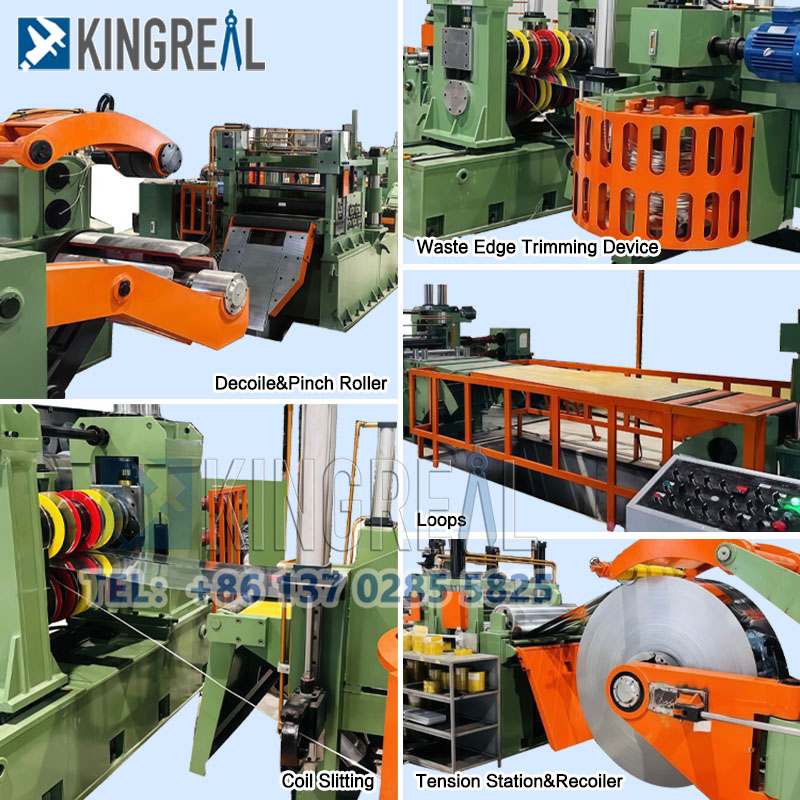

Working Process of Simple Slitting Line

Decoiler — Side Guding — Main Coil Slitter — Waste Collection Device — Recoiler

Technical Parameters of Simple Slitting Machine

Features of Simple Slitting Machine

1) Compact & Fully Functional

Compared to the bulky metal slitting machines typically found on the market, this simple slitting machine occupies a significantly smaller footprint while offering a comprehensive suite of functions. The simple slitting machine is designed not only to execute core processes—such as decoiling, slitting, and recoiling—but is also specifically engineered to meet the needs of customers operating within limited factory spaces. Its compact design philosophy enables factories to achieve highly efficient production operations, even within confined environments.



2) Fully Automated Operation

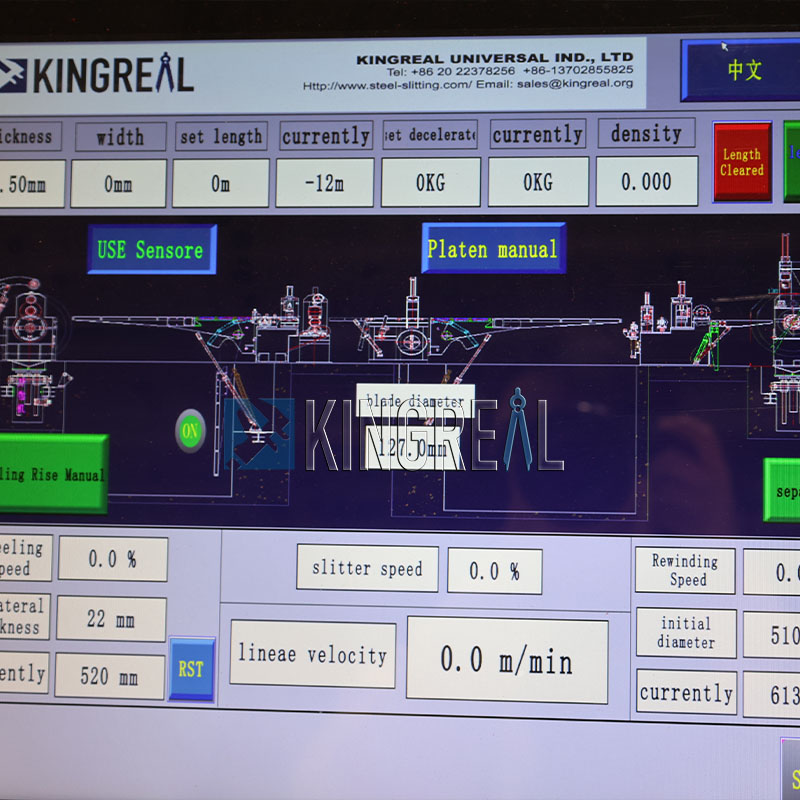

Constructed from high-precision components, the simple slitting machine features fully automated operations. Users simply need to utilize the PLC control panel to input the required operating speed, slitting width, and other parameters; the simple slitting machine then automatically executes the entire production process. Notably, the parameter adjustment process is both simple and rapid; with just a few quick steps, the simple slitting line instantly adapts its operating state to align with the new settings. This delivers significant time savings and operational convenience for businesses, eliminating the need for tedious manual adjustments and ensuring a highly efficient and stable production workflow.

3) Ideal for Startups and Small Businesses

For newly established enterprises—or for small companies that do not require excessively high production volumes—this simple slitting machine represents an ideal and practical choice. Compared to other metal slitting machine models offered by KINGREAL SLITTING, this unit features a cutting speed of 120 m/min. While it may not rank among the absolute fastest in the high-speed market segment, the simple slitting line's exceptional cost-effectiveness and versatility make it particularly well-suited for startups and customers with lower production volume requirements. With this simple slitting machine, customers can launch their metal processing operations with a lower initial investment, thereby enabling them to gradually scale up their production capabilities over time.



4) High Efficiency in Producing Multiple Narrow Strips

This simple slitting line is capable of producing up to 32 narrow strips in a single pass, providing a significant boost to a company's production efficiency. Whether the output is intended for cable sheathing, display substrates, or other electronic components, customers can flexibly adjust their production schedules to meet diverse requirements, thereby maximizing resource utilization.

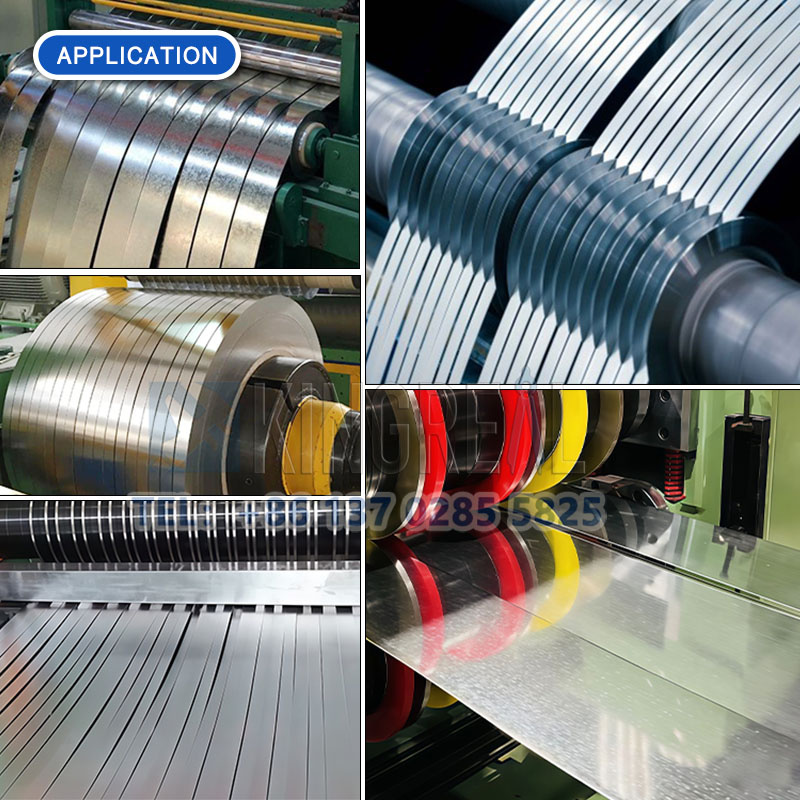

Applications of Simple Slitting Machine

This simple slitting line is highly efficient at processing metal materials with a thickness ranging from 0.5 mm to 1.0 mm, producing thin, lightweight, and precision-cut narrow metal strips. These strips have an extremely wide range of applications and demonstrate immense commercial value—particularly in the cable, electronics, and mechanical manufacturing sectors.

In the cable industry, the narrow strips produced by this simple slitting machine are primarily used for cable shielding layers. The shielding layer serves as a critical protective barrier between the cable's internal conductors and the external environment; it effectively prevents signal interference and mitigates the impact of external electromagnetic radiation on signal transmission, thereby enhancing product reliability and stability. By utilizing the metal strips generated by KINGREAL SLITTING simple slitting line, cable manufacturers can ensure the superior performance of their products across various operating environments, thereby meeting rigorous market standards.

In transformer manufacturing, these narrow strips can be utilized as core materials or shielding materials. Transformers are vital components within power systems, and their core materials require excellent electromagnetic properties. The narrow strips processed by this simple slitting machine—characterized by their excellent electrical and thermal conductivity—make them an ideal choice for transformer manufacturing. This not only boosts the transformer's operational efficiency but also effectively extends its service life.

In the electronics industry, the metal strips produced by this simple slitting line are used not only for electromagnetic shielding but are also widely applied in the manufacturing of critical components, such as connecting cables and conductive elements. While ensuring equipment performance, these metal components also effectively reduce the product's overall weight, thereby meeting market demand for lightweight and slim products.

Whether in the fields of cables, transformers, hardware, or electronic components, customers can utilize this simple slitting machine to achieve higher production efficiency and produce superior-quality products.

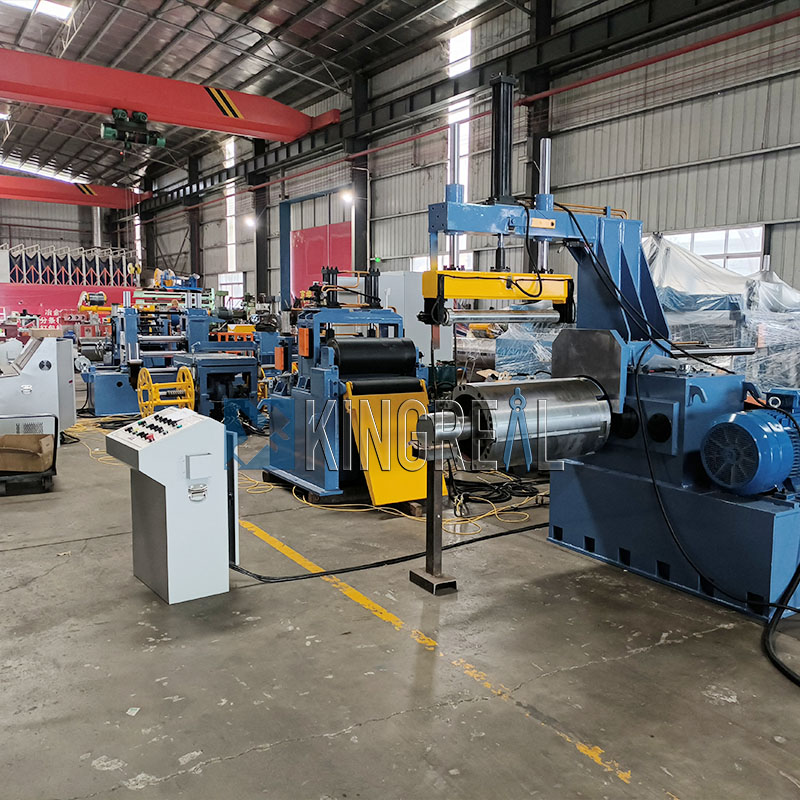

2026 Simple Slitting Machine Project

This simple slitting line represents a custom-tailored project developed by KINGREAL SLITTING specifically for a customer in India. The Indian customer, operating within the cable industry, required a simple slitting machine capable of processing metal materials ranging in thickness from 0.5 mm to 0.7 mm. To address this customer's specific requirements, the KINGREAL SLITTING team conducted a detailed analysis and subsequently designed a specialized, simple slitting line. This design ensures the production of functional metal shielding tapes for cables—specifically tailored to meet the application needs of small-to-medium cross-section, medium-to-low voltage power cables and control cables.

During the design phase, KINGREAL SLITTING engineers focused primarily on the following key aspects:

-Precision Control of Circular Blade Clearance: To accommodate the customer's specific material requirements, KINGREAL SLITTING designed a precision clearance control system for the upper and lower cutting blades, thereby ensuring the utmost accuracy in the slitting process.

-Tension Stability: The KINGREAL SLITTING team meticulously engineered the simple slitting machine's tension system to guarantee that the metal material is not stretched during production, thereby preventing any compromise to the quality of the finished product.

-Neat Rewinding: The simple slitting line features a neat and orderly rewinding mechanism, which facilitates subsequent packaging, transportation, and storage, thereby enhancing the efficiency of logistics and distribution.

-High Guiding Accuracy: To meet the strict linearity requirements for narrow metal strips, the KINGREAL SLITTING team enhanced the edge-guiding system. This ensures that the narrow strips remain free from diagonal cutting errors, thereby significantly improving the consistency of the finished products.

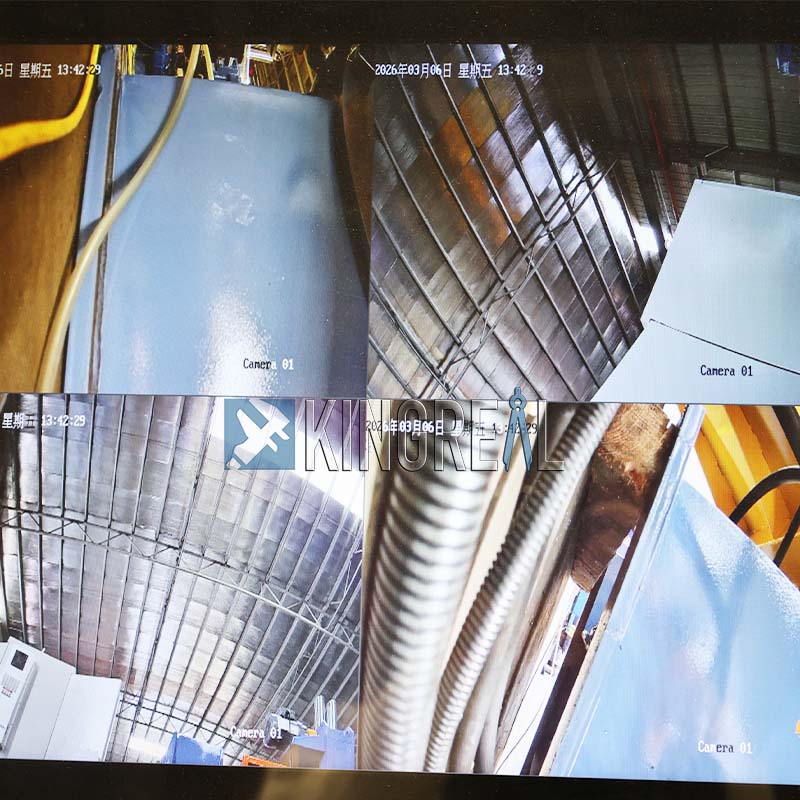

Recently, the KINGREAL SLITTING team conducted a video conference with the Indian customer, allowing them to participate remotely in the simple slitting machine's trial run. The Indian customer expressed immense satisfaction with the performance of the simple slitting line. Moving forward, the KINGREAL SLITTING team will proceed with preparations for shipping the simple slitting line, ensuring its prompt delivery to India to support the growth and development of the local metal processing industry.
