Coil Upender

Introduction to Coil Upender

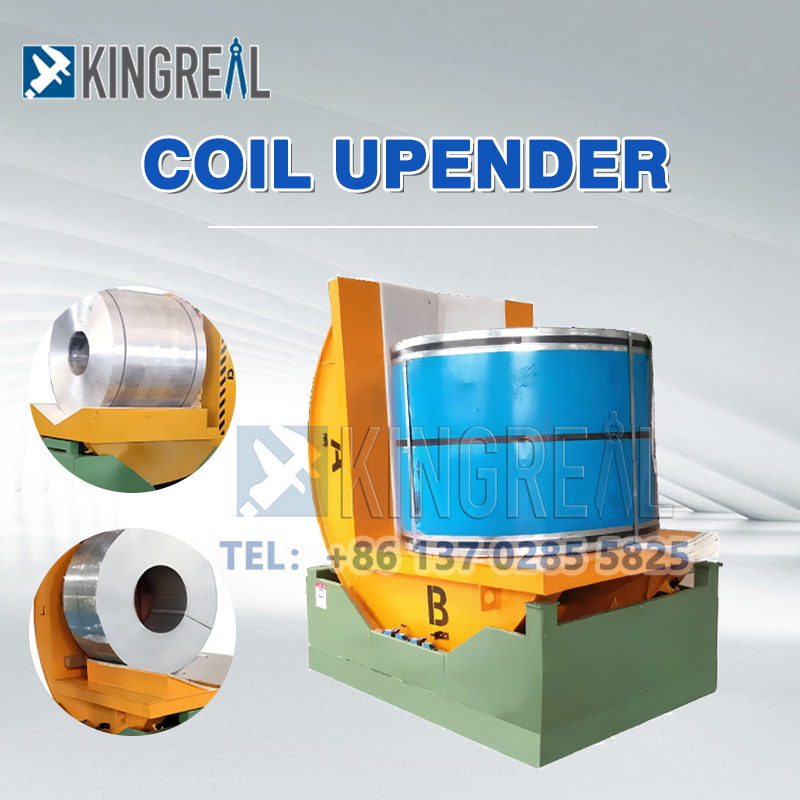

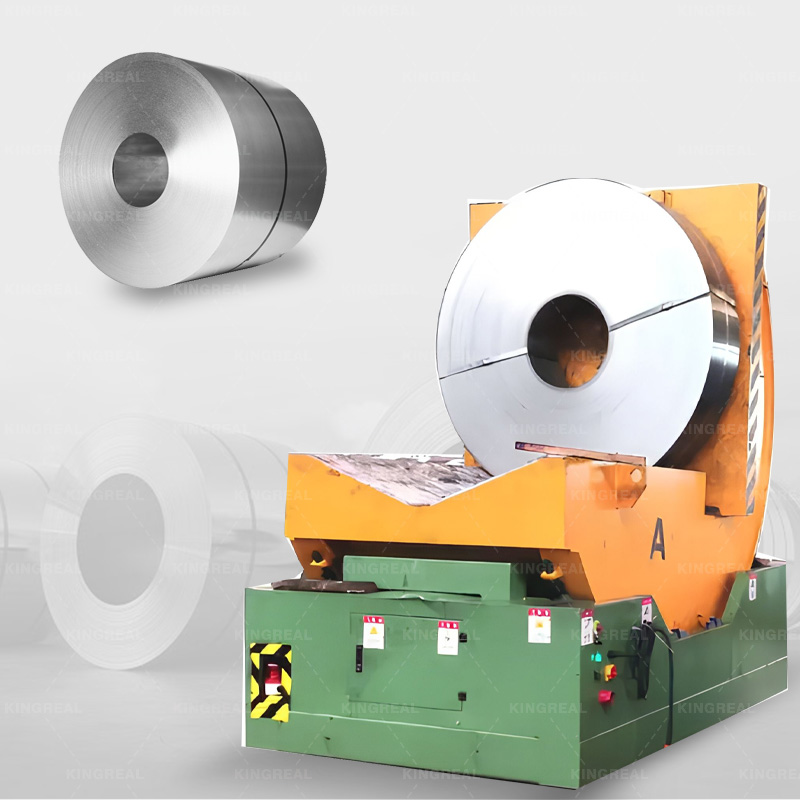

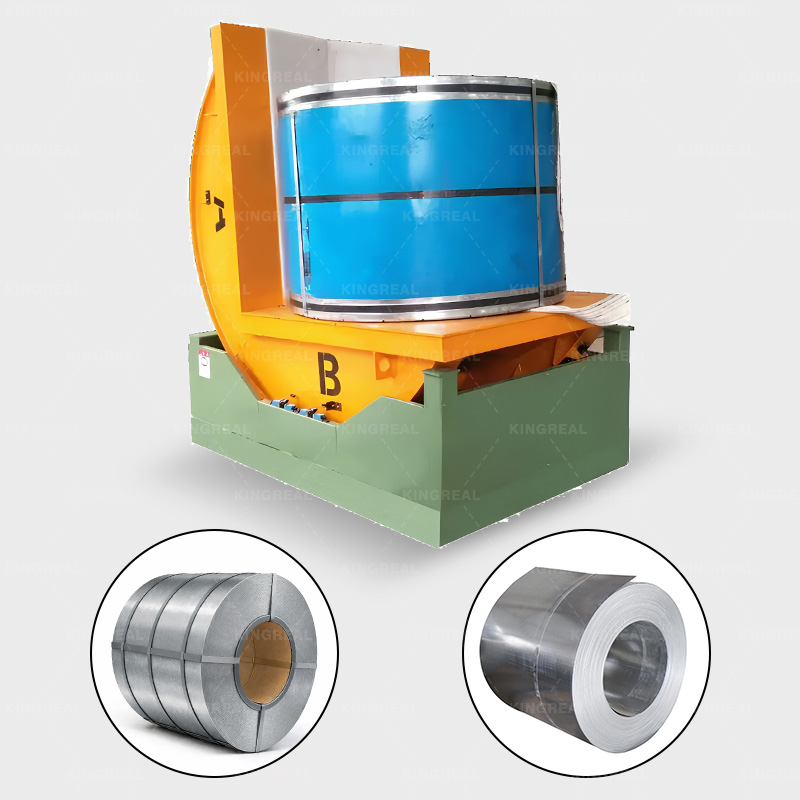

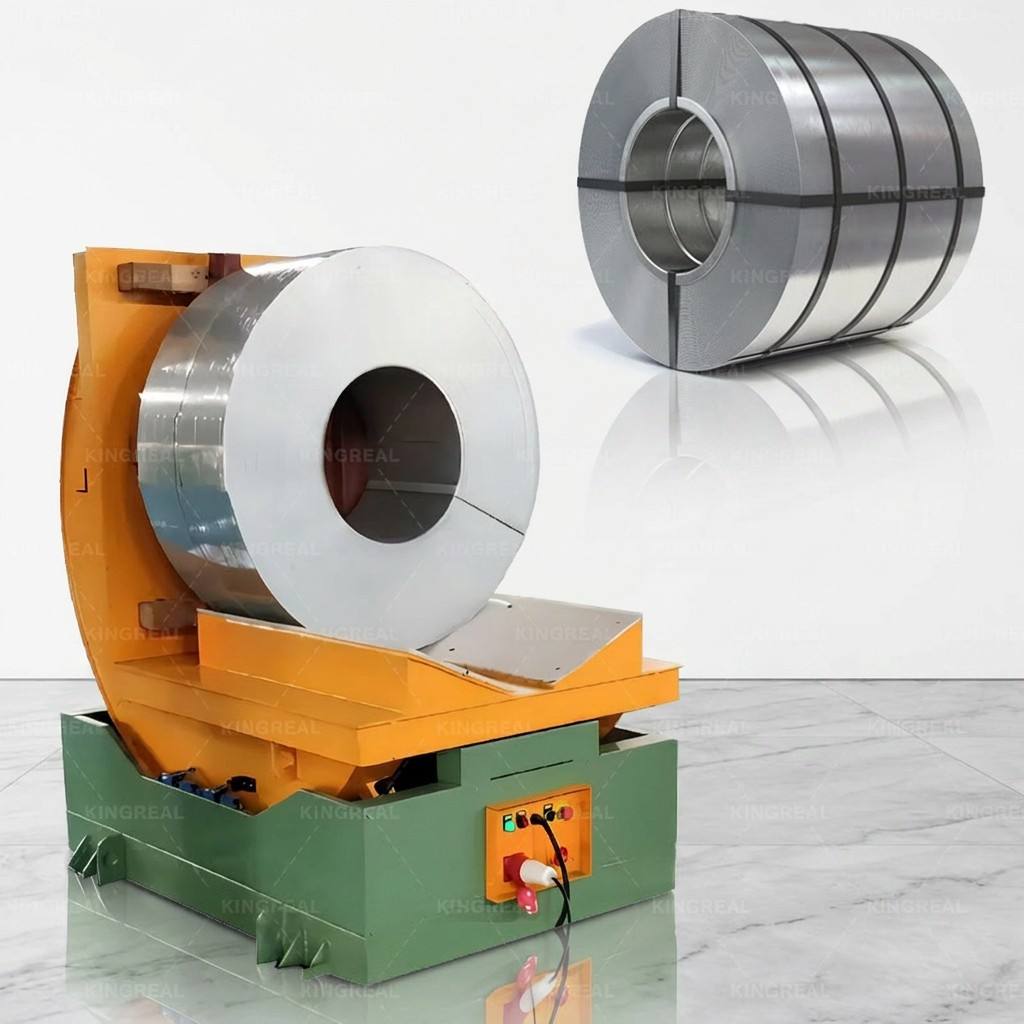

Coil upender also known as coil tilting station, is widely used in metal processing lines to precisely switch heavy metal coils between vertical and horizontal orientations. It is suitable for turning various industrial coils, including steel, aluminum, and copper.

KINGREAL SLITTING coil tilting stations are designed for the safe and stable handling of heavy coils, seamlessly integrating with downstream processes such as strapping, stretch wrapping, stacking or storage, and feeding for further processing.

Furthermore, the coil tipper tilter machine can be customized based on specific on-site production scenarios and key coil parameters—such as weight, thickness, width, and material—by tailoring the structural design, power system, and load-bearing specifications. This ensures a perfect fit for the diverse production needs of metal processing enterprises of all sizes, accommodating both standard coils and heavy coils with special specifications.

Specifications of Coil Upender

Features of Coil Upender

Optimized Hydraulic Power System This coil tilting station features a newly optimized, integrated hydraulic station that ensures smooth operation and uniform pressure output. Operating noise levels are well below industry standards, making it suitable for quiet workshop environments. It is equipped with an integrated cooling fan that dissipates heat from the hydraulic system in real-time, effectively preventing issues like excessive oil temperature and power loss during prolonged, continuous operation. This significantly extends the service life of hydraulic components and the coil tipper tilter machine itself, reduces long-term maintenance costs, and ensures stable, round-the-clock operation.   High-Hardness & Wear-Resistant Drive Structure The core drive mechanism of the coil upender utilizes high-hardness, wear-resistant gear assemblies paired with specialized precision reducers to form a stable, high-efficiency drive system. The entire structure undergoes hardening and wear-resistance treatments, offering superior resistance to abrasion and impact, as well as high load-bearing capacity, enabling it to withstand the intense, sustained loads associated with heavy coil tilting. Precise gear ratios allow for exact control over tilting speed and angle, eliminating issues such as stuttering, misalignment, or swaying. This ensures smooth, uniform motion throughout the process, guaranteeing operational precision while significantly enhancing coil tilting station durability and reducing the frequency of component replacements.

Fully Controlled Tilting Process KINGREAL SLITTING coil tipper tilter machines employ a programmed closed-loop control mode, allowing for precise control and adjustment of every stage—start-up, rotation, braking, and resetting. The tilting angle is exact, and the movement is gentle, free from impact or vibration. This system effectively resolves issues common to traditional equipment, such as excessive inertia and loss of control over the load's orientation. It fundamentally prevents quality defects—including scratches, crushing, deformation, or loosening of the coil—thereby comprehensively protecting the coil's condition, ensuring it remains intact after tilting, and effectively reducing material loss rates for the enterprise.   Comprehensive Safety Protection All moving parts of the coil upender are equipped with a high-precision safety edge system featuring intelligent sensing capabilities. During operation, if an operator or foreign object enters the machine's operating zone, the safety edge system instantly detects the intrusion and triggers an emergency stop, effectively preventing accidents such as crushing or collisions. Complemented by an enclosed protective structure, emergency stop buttons, and overload protection devices, this multi-layered safety system eliminates hazards associated with heavy coil tilting, ensuring both operator safety and secure equipment operation.

Application of Coil Upender

KINGREAL SLITTING coil tilting stations are precision-engineered to meet the production line requirements of various metal processing manufacturers. Serving as core auxiliary equipment for coil pre-treatment, finished product packaging, and warehousing or transfer operations, they fully replace manual labor and rudimentary tilting devices. They effectively resolve industry challenges such as misalignment, deformation, damage, and low efficiency during coil handling and tilting.

This coil tipper tilter machine offers exceptional versatility, accommodating a wide range of coil sizes, specifications, and weights. Whether handling lightweight, thin-gauge coils or heavy, thick, large-format coils, the coil upender ensures smooth, steady, and consistent tilting operations. With millimeter-level positioning accuracy, the coil tilting station operates within tight tolerances, minimizing the risk of stress-induced deformation or positional shifts, thereby maximizing processing precision and finished product quality.

In practical production, the coil tipper tilter machine integrates seamlessly with upstream and downstream processes—such as slitting, cutting, strapping, wrapping, and stacking—fitting perfectly into automated production line workflows. This significantly boosts the automation level and efficiency of the entire line, helping enterprises reduce manual intervention, lower material scrap rates, and optimize production processes to achieve cost savings and increased productivity.

Why Choose KINGREAL SLITTING?

As a professional brand dedicated to the R&D and manufacturing of metal coil processing equipment, KINGREAL SLITTING has over two decades of industry experience. We specialize in the development, production, and customization of various coil forming, processing, and packaging equipment, backed by mature technology, reliable quality, and comprehensive support services.

KINGREAL SLITTING offers more than just coil upenders; we provide integrated, one-stop solutions for coil processing. In addition to the core coil tilting station, we supply complementary equipment such as complete coil packaging lines, steel coil slitting lines, and automatic cut to length machines. This enables fully automated end-to-end production—from raw material loading, orientation flipping, and precision processing to forming, cutting, and final packaging or warehousing. Our equipment offers strong compatibility and seamless line integration, helping enterprises build unified, intelligent production lines.

With over twenty years of deep industry engagement, KINGREAL SLITTING has accumulated extensive experience in project implementation and is well-versed in international industrial safety standards and regulatory requirements. KINGREAL SLITTING offers personalized customization services tailored to each client's specific production scenarios, capacity requirements, site conditions, and local safety regulations. We precisely optimize specifications, structural configurations, and safety systems to deliver bespoke equipment solutions that ensure optimal compatibility and performance.

Furthermore, KINGREAL SLITTING provides comprehensive support—including pre-sales site assessment, on-site commissioning, and post-sales maintenance—to guarantee the stable and efficient operation of the coil tipper tilter machine, thereby safeguarding the client's long-term production.
