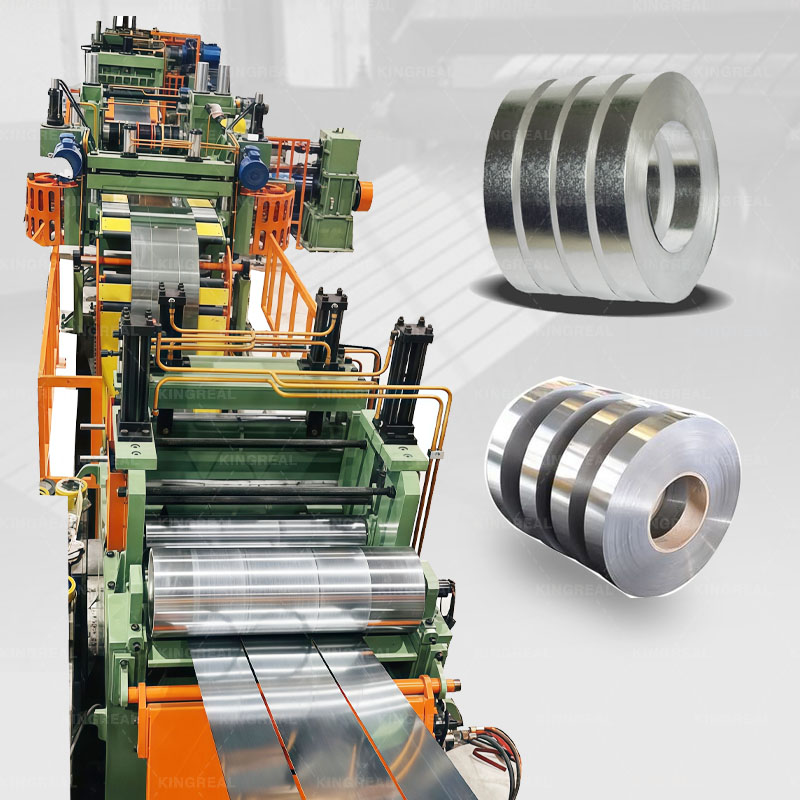

In the field of modern metal manufacturing and processing, the CR slitting machine is an indispensable piece of core coil processing equipment. It is primarily used to cut wide raw material coils—such as cold-rolled steel, stainless steel, aluminum, and copper—into narrow strips of specific dimensions through a precise longitudinal slitting process.
Renowned for high precision and stability, the CR slitting line meets the demands for the refined processing of various cold-rolled sheets. It is widely utilized across industries including machinery manufacturing, hardware production, home appliance manufacturing, automotive welded pipe production, and metal packaging, directly determining the dimensional accuracy and surface quality of the final products.
Introduction to CR Slitting Line
The core process of a CR slitting machine involves key steps such as uncoiling, slitting, and recoiling, enabling the mass processing of standard-width cold-rolled coils into customer-specified narrow strips. Unlike hot-rolled sheets, cold-rolled steel is characterized by a superior surface finish, excellent flatness, and strict dimensional tolerances. The processing leaves little room for error; even minor burrs, dimensional deviations, or surface scratches can directly compromise the quality and performance of the end product.
A high-quality CR slitting line must balance precise cutting with material protection; the KINGREAL SLITTING CR slitting machine stands as an industry benchmark in this regard. Equipped with a precision slitting control system and a flexible conveying structure, it preserves the material's original surface finish and mechanical properties while preventing processing defects. It achieves millimeter-level precision in longitudinal slitting, ensuring dimensional consistency across all strips and making it suitable for a wide range of high-precision cold-rolled sheet processing applications.
Types of CR Slitting Machines
Based on the thickness, width, and processing intensity requirements of the raw materials, CR slitting lines are precisely categorized into three types: light-gauge, medium-gauge, and heavy-gauge slitting machines. Each type features distinct structural configurations, processing parameters, and application focuses, collectively covering the full spectrum of slitting needs for thin, medium, and heavy cold-rolled sheets.
1
CR Slitting Machine for Light-Gauge Materials
This CR slitting line specializes in the precision processing of light-gauge sheet materials, handling thicknesses ranging from 0.15 mm to 2.0 mm and accommodating raw material widths up to 1,600 mm. Designed for soft, high-precision materials—such as cold-rolled steel, aluminum, copper, and stainless steel coils—it serves as core equipment for precision metal processing.
It is widely used in industries with stringent requirements for strip precision and surface quality, such as electronics, high-end home appliances, and precision packaging. Equipped with precision edge-trimming units, dynamic loop tension control systems, and fully automatic tension adjustment modules, the CR slitting machine ensures stable control over feeding and slitting speeds. This results in smooth, burr-free, and flat-edged strips with minimal dimensional deviation, fully meeting the standards for high-end precision manufacturing.
2
CR Slitting Machine for Medium-Gauge Materials
This CR slitting line is designed for medium-gauge materials with thicknesses ranging from 1.0 mm to 6.0 mm and raw material widths up to 1,800 mm, making it suitable for the mass processing of various medium-strength cold-rolled coils. With an optimized machine structure and drive system that balances processing speed with structural rigidity, it overcomes challenges such as high cutting resistance and material deformation, while ensuring efficient, large-scale production.
Primarily serving sectors such as automotive parts, furniture frames, HVAC duct components, and general hardware, this CR slitting machine is a mainstay for steel processing/distribution centers and steel mills handling bulk cold-rolled coils. Its stable performance enables the mass production of uniformly sized strips, meeting the needs of large-scale manufacturing for mid-range industrial products.
3
CR Slitting Machine for Heavy-Gauge Materials
Designed for high-strength, heavy-gauge cold-rolled sheets, this CR slitting line handles thicknesses ranging from 3.0 mm to 12.0 mm and raw material widths up to 2,000 mm, serving as core equipment for heavy-duty metal processing. This CR slitting machine features a reinforced overall design that significantly enhances the machine body's load-bearing capacity and structural stability. It ensures smooth processing of high-strength, thick cold-rolled steel plates, effectively handling the high resistance and heavy loads associated with slitting such materials.
Equipped with core components such as a hydraulic expansion mandrel, a high-capacity recoiler, and a high-power rigid drive system, the CR slitting line eliminates issues like strip deviation, deformation, and uneven cut edges during the slitting of thick plates. The resulting products offer high strength and stability, making the machine ideal for processing heavy-duty cold-rolled products used in structural components for buildings, infrastructure projects, shipbuilding, and heavy machinery parts.

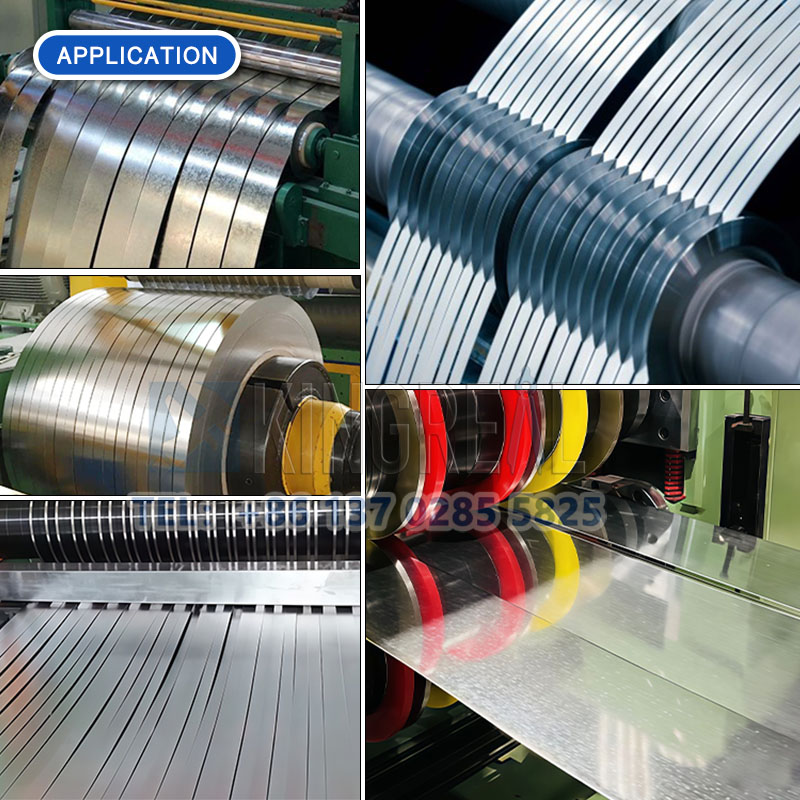

Specific Applications of CR Slitting Machine
1. Automotive Manufacturing Industry
Cold-rolled steel strips processed by this CR slitting line are widely used to manufacture automotive components such as body panels, structural reinforcements, internal brackets, and decorative trim. Amidst current trends toward lightweight and high-quality vehicles, thin, high-strength cold-rolled strips have become a core raw material. High-precision CR slitting machines ensure accurate control over strip dimensions and flatness, thereby guaranteeing the assembly precision and structural integrity of automotive parts.
2. Construction and Infrastructure Industry
Narrow cold-rolled strips produced by this CR slitting line serve as core raw materials for architectural components such as door and window profiles, steel keel systems, suspended ceiling frameworks, steel doors, and lightweight steel beams. The machine can precisely produce strips of specific widths required for roll-forming and welding processes based on construction needs, offering excellent raw material adaptability and consistent product specifications.
3. Electrical and Electronics Industry
The production of transformer cores, silicon steel laminations for motors, and precision components for switchgear relies on thin-gauge cold-rolled coils processed by CR slitting machines. High-precision CR slitting lines strictly control dimensional tolerances, ensuring uniformity in silicon steel laminations and conductive steel strips, which effectively reduces iron losses during motor and transformer operation.
4. White Goods Manufacturing Industry
Exterior casings and structural components for major home appliances—such as refrigerators, washing machines, and air conditioners—are predominantly manufactured using cold-rolled steel sheets. CR slitting machines can pre-cut wide cold-rolled steel coils into narrow strips of customized specifications. This provides standardized raw materials for the stamping and bending of home appliance components—such as casings, inner drums, and panels—thereby significantly reducing processing time while ensuring a high-quality surface finish.
5. Metal Packaging Industry
Products such as metal cans, sealed steel drums, and metal shells for food packaging demand extremely high standards regarding the flatness of cut edges and dimensional accuracy. Cold-rolled slit strips produced by these CR slitting lines feature burr-free edges, minimal dimensional deviation, and pristine surface finishes. They fully meet the sealing requirements of metal packaging products, effectively enhancing the can's sealing integrity, compressive strength, and service life, while satisfying the production needs of various high-end metal packaging applications.
Investment Value of High-Quality CR Slitting Machines
The quality of the CR slitting line directly determines the processing precision, product yield rate, and production efficiency of the cold-rolled strips. To fully leverage the advantages of the cold-rolled slitting process, it is essential to select high-quality CR slitting machine characterized by precision cutting control, a robust machine structure, intelligent tension regulation, ease of maintenance, and high stability.
KINGREAL SLITTING can customize CR slitting lines tailored to specific customer requirements regarding material type, thickness, coil width, and production capacity. These CR slitting machines balance precision, efficiency, and durability, ensuring stable, long-term performance in the slitting of various cold-rolled steel sheets.
Please contact KINGREAL SLITTING directly for more information!
