In metal slitting operations, slit coils—characterized by delicate edges, large surface areas, and sensitive material properties—are highly susceptible to damage during production and packaging. Traditional workflows often rely on manual labor for the transfer, strapping, packaging, and stacking of coils. Inconsistent handling force, irregular movement paths, and non-uniform packaging standards frequently lead to quality defects such as surface scratches, edge collapse, end-face deformation, and oxidation or rust.
To address these common industry pain points, KINGREAL SLITTING has launched an automated slit coil packaging line solution, helping metal processing enterprises fully optimize the entire handling and packaging workflow for slit coils, thereby achieving upgrades in quality, cost-efficiency, and productivity.
Advantages of Using Slitting Coil Package Line

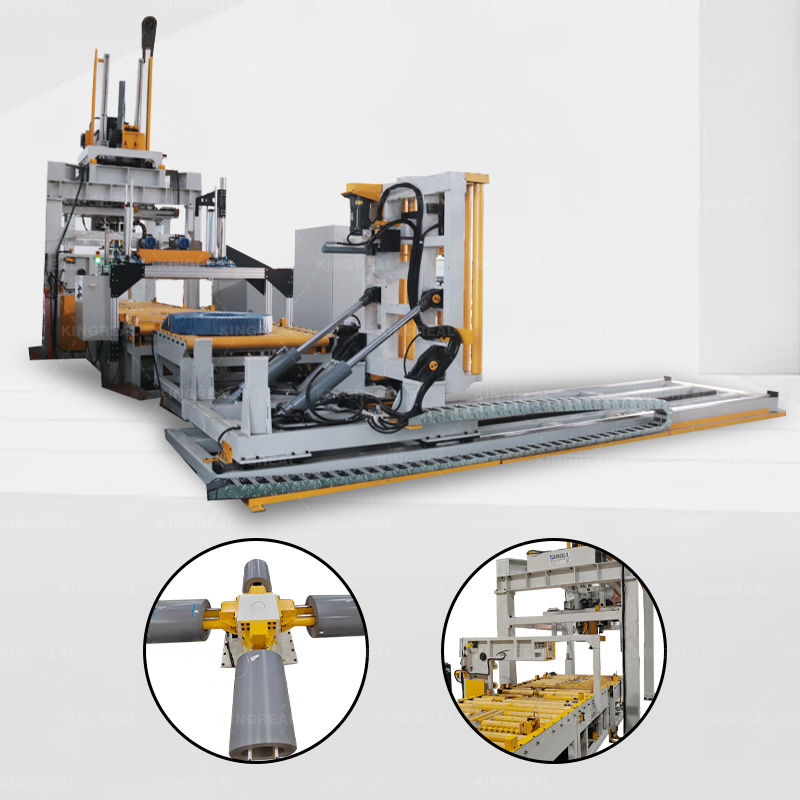

This standardized slit coil packaging line integrates processes such as single-coil separation, precision weighing, intelligent strapping, centering, stretch wrapping, automatic labeling, and automated stacking, covering every step from coil discharge to warehousing.
The slitting coil package line can interface directly with the downstream end of a steel coil slitting line; once the steel coil slitting machine discharges the slit coils, a cross-arm mechanism automatically retrieves the finished coils.
The system then executes stretch wrapping and precision palletizing entirely automatically, ensuring seamless integration across slitting, handling, packaging, and stacking processes. Alternatively, it can operate as a standalone production line, meeting the flexible production needs of small and medium-sized enterprises.
Regarding strapping configurations, the KINGREAL SLITTING slit coil packaging line can be tailored to the specific material properties (e.g., stainless steel, carbon steel, aluminum alloy), thickness specifications, and load-bearing requirements of different coils. It can be equipped with either PP or PET strapping materials, or feature dual strapping heads capable of switching between PP and PET modes.
This flexibility ensures secure, consistent, and stable strapping for coils of varying materials and specifications.
The slitting coil package line offers diverse options for stacking configurations.
The first is a floor-stacking mode suitable for temporary storage and short-distance transfer, offering convenience and efficiency.
The second integrates with the enterprise's existing conveying equipment, automatically transferring packaged slit coils to the facility's own conveyor lines for seamless production flow.
The third is a high-end, automated multi-coil stacking and packaging mode that handles dunnage placement, pallet transport, multi-coil stacking, and full-unit stretch wrapping—all without manual intervention. The system automatically places dunnage between coil layers to prevent damage from crushing or friction and positions load-bearing pallets at the base to ensure stability.

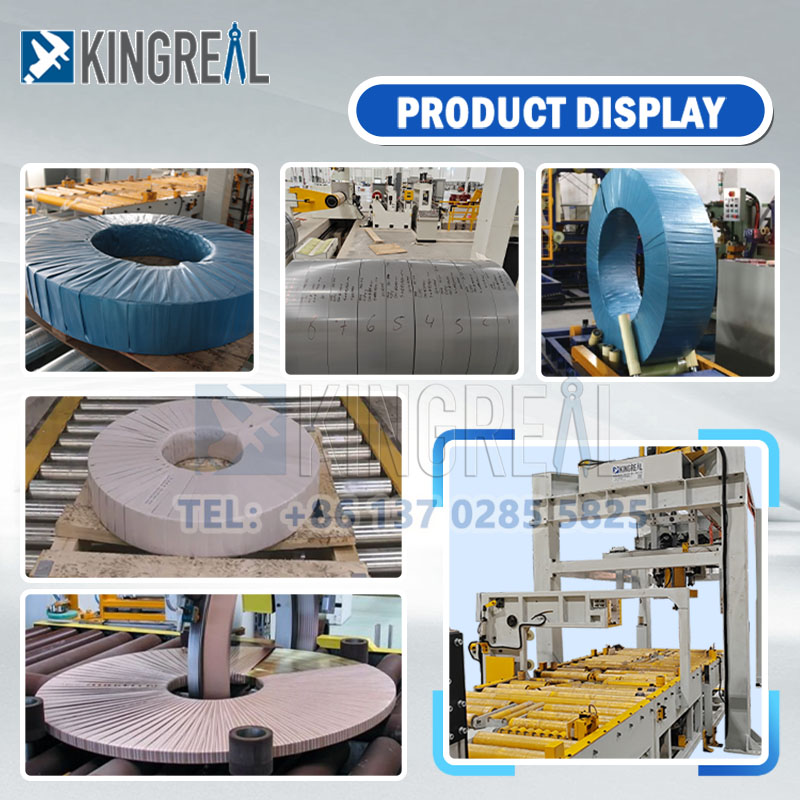

Once stacked, the entire unit is wrapped in plastic film (either automatically or manually) for comprehensive protection, meeting the requirements for long-distance transport and long-term storage.
Process Flow of Slit Coil Packaging Line

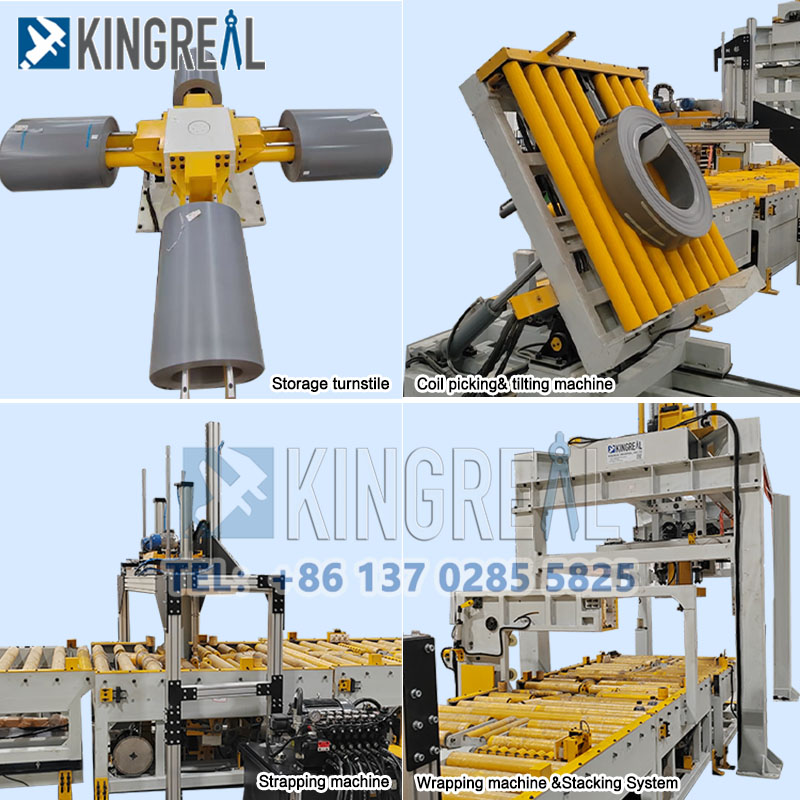

01 Material Buffering: Slit steel coils are stored on the slitting coil package line's cross-arm mechanism; the system can hold up to four master coils simultaneously, acting as a material buffer.
02 Automatic Retrieval and Upending: An automatic retrieval and upending mechanism precisely grips the steel coils from the cross-type turnstile coil-storage arm, separates them individually, and performs a simultaneous 90-degree upending maneuver to correct the coil's orientation.
03 Weighing and Labeling: The upended coils are transported via powered rollers to the weighing station for precise weight measurement. The system automatically prints and applies labels containing product specifications, batch numbers, weights, and production dates.
04 Intelligent Strapping: Labeled coils enter the dedicated coil strapping machine, where the equipment automatically applies four standardized straps based on coil specifications, ensuring uniform spacing and controlled tension.
05 Precision Centering: After strapping, an automatic centering process corrects any positional deviation, ensuring the coil is perfectly centered. This establishes a precise positional baseline for subsequent stretch wrapping and stacking operations, preventing packaging misalignment or leaning stacks.
06 Stretch Wrapping: Once positioned, the steel coil enters the horizontal steel coil packing line. The equipment automatically secures the leading edge of the wrapping material and performs comprehensive wrapping based on preset parameters, ensuring a tight seal that effectively blocks air and moisture to prevent rust and scratches.
07 Secondary Centering and Fine-tuning: After wrapping, the trailing edge is secured with manual assistance. As the equipment conveys the coil, it performs a secondary precision centering operation to completely eliminate positional deviations and ensure the neatness of the finished product.
08 Automated Stacking: Following secondary centering, the coil is conveyed to the downstream stacking station. The slit coil packaging line executes automated stacking, dunnage placement, and pallet alignment according to preset modes, ensuring a neat and stable stack.
09 Finished Product Transfer: Once the complete packaging and stacking process is finished, forklifts transfer the finished coils to the storage area.
The slitting coil package line not only significantly boosts operational efficiency in the packaging, handling, and stacking of slit coils but also comprehensively ensures their aesthetic quality and structural stability. It provides robust support for product quality upgrades, capacity expansion, and cost optimization within the metal processing industry.
For more information on customized solutions for optimizing slit coil handling and packaging, please contact KINGREAL SLITTING directly.
